Quantity
Price
Total price
1
$1.2250
$1.2250
10
$1.0640
$10.6400
432
$0.8610
$371.9520
864
$0.7700
$665.2800
1296
$0.6790
$879.9840
5184
$0.6020
$3,120.7680
10368
$0.5880
$6,096.3840

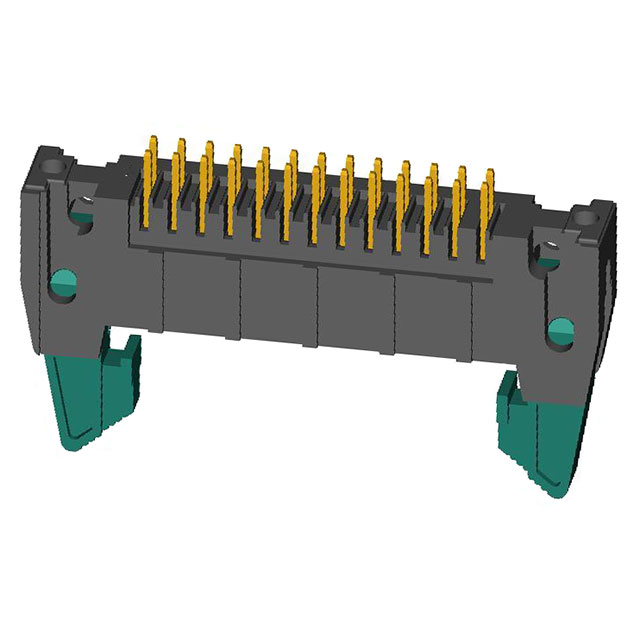

| TYPE | DESCRIPTION |
| Mfr | CnC Tech |
| Series | - |
| Package | Tray |
| Product Status | ACTIVE |
| Features | Keying Slot |
| Connector Type | Header |
| Voltage Rating | 250VAC/DC |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Shape | Square |
| Contact Length - Post | 0.134" (3.40mm) |
| Insulation Height | 0.669" (17.00mm) |
| Shrouding | Shrouded - 4 Wall |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | 0.100" (2.54mm) |
