Quantity
Price
Total price
1
$33.0260
$33.0260
10
$30.3100
$303.1000
25
$29.1410
$728.5250
50
$28.1680
$1,408.4000
100
$26.6140
$2,661.4000
250
$25.8370
$6,459.2500
| TYPE | DESCRIPTION |
| Mfr | ODU |
| Series | ODU MINI-SNAP® K |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Backshell, Strain Relief |

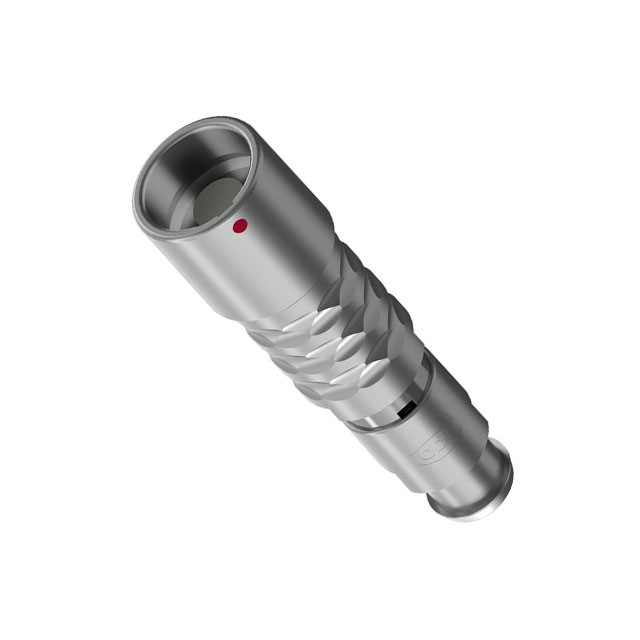

| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Orientation | 0 |
| Shell Size - Insert | 0 |
| Operating Temperature | -40°C ~ 120°C |
| Applications | Industrial, Medical, Military, Testing Equipment & Measurement |
| Fastening Type | Push-Pull |
| Termination | Solder Cup |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | 0.118" ~ 0.138" (3.00mm ~ 3.50mm) |
| Contact Material | Brass |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Insert Material | Polyetheretherketone (PEEK) |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Primary Material | Metal |
