Quantity
Price
Total price
1
$5.3060
$5.3060
16
$4.7950
$76.7200
112
$4.2000
$470.4000
512
$3.5350
$1,809.9200
1008
$3.0940
$3,118.7520

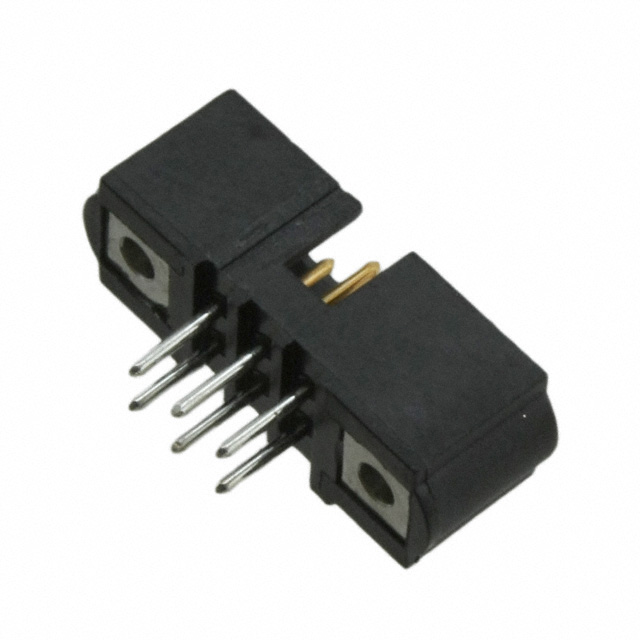

| TYPE | DESCRIPTION |
| Mfr | Harwin |
| Series | Datamate J-Tek |
| Package | Tube |
| Product Status | ACTIVE |
| Features | Keying Slot, Mating Flange |
| Connector Type | Header |
| Voltage Rating | 120V |
| Current Rating (Amps) | 2.2A |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 121°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Turn Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Mated Stacking Heights | 7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm |
| Insulation Color | Black |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Shape | Circular |
| Contact Length - Post | 0.130" (3.30mm) |
| Insulation Height | 0.220" (5.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Row Spacing - Mating | 0.079" (2.00mm) |
