Quantity
Price
Total price
1
$31.9200
$31.9200
10
$29.2950
$292.9500
25
$28.1680
$704.2000
50
$27.2300
$1,361.5000
100
$25.7250
$2,572.5000
250
$24.9760
$6,244.0000

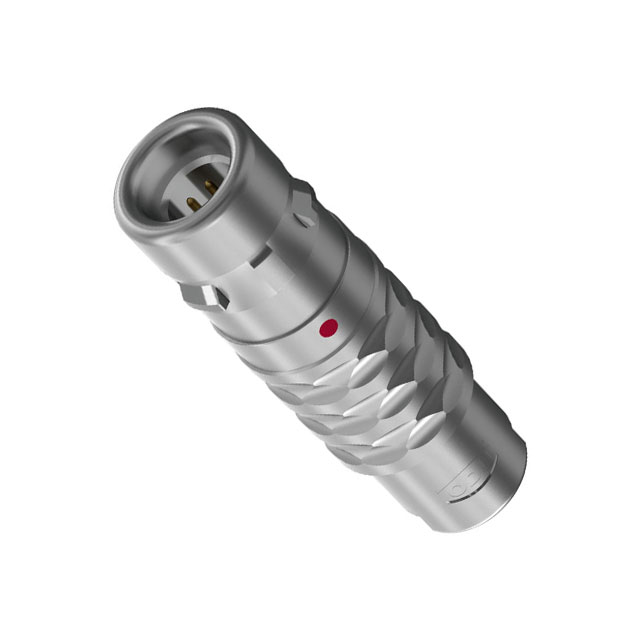

| TYPE | DESCRIPTION |
| Mfr | ODU |
| Series | ODU MINI-SNAP® K |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Backshell |
| Connector Type | Plug, Male Pins |
| Color | Silver |
| Current Rating (Amps) | 12A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 3 |
| Orientation | 0 |
| Shell Size - Insert | 1 |
| Operating Temperature | -40°C ~ 120°C |
| Applications | Industrial, Medical, Military, Testing Equipment & Measurement |
| Fastening Type | Push-Pull |
| Termination | Solder Cup |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | 0.197" ~ 0.217" (5.00mm ~ 5.50mm) |
| Contact Material | Brass |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Insert Material | Polyetheretherketone (PEEK) |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Primary Material | Metal |
