Quantity
Price
Total price
1
$17.1570
$17.1570
10
$15.0290
$150.2900
25
$14.3780
$359.4500
50
$13.9160
$695.8000
100
$13.4470
$1,344.7000
250
$12.7050
$3,176.2500
500
$12.3340
$6,167.0000

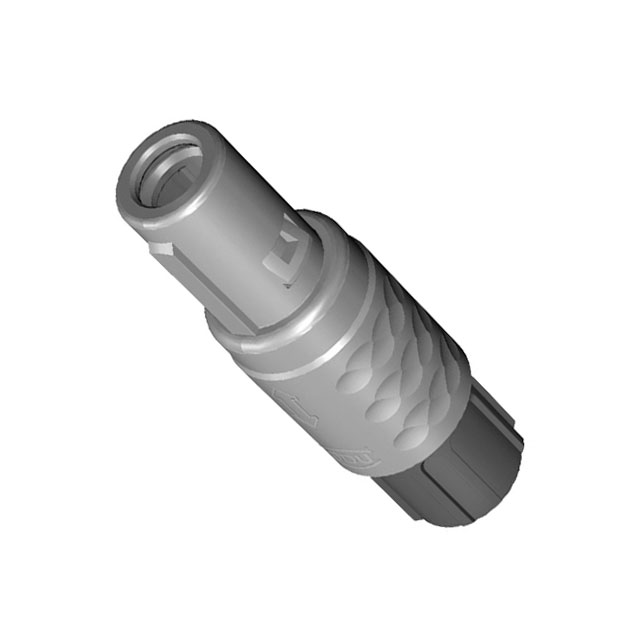

| TYPE | DESCRIPTION |
| Mfr | ODU |
| Series | ODU MEDI-SNAP® |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Backshell |
| Connector Type | Plug, Male Pins |
| Color | Gray |
| Current Rating (Amps) | 2.75A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 10 |
| Orientation | 0 |
| Shell Size - Insert | 1 |
| Operating Temperature | -50°C ~ 120°C |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Fastening Type | Push-Pull |
| Termination | Solder Cup |
| Ingress Protection | IP50 - Dust Protected |
| Cable Opening | 0.157" ~ 0.205" (4.00mm ~ 5.20mm) |
| Contact Material | Brass |
| Contact Finish - Mating | Gold |
| Shell Material | Polysulfone (PSU) |
| Insert Material | Polyetheretherketone (PEEK) |
| Backshell Material, Plating | Polysulfone (PSU) |
| Primary Material | Plastic |
