取消
Quantity
Price
Total price
1
$38.9760
$38.9760
10
$35.7700
$357.7000
25
$34.3910
$859.7750
50
$33.2430
$1,662.1500
100
$31.4090
$3,140.9000

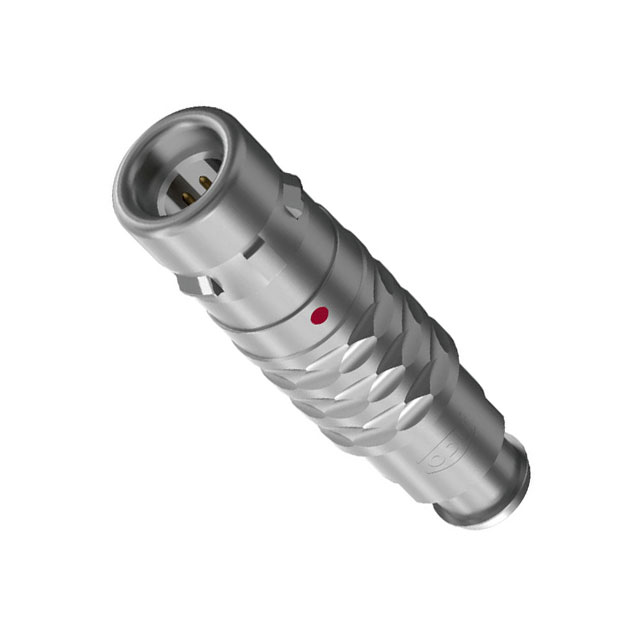

| TYPE | DESCRIPTION |
| Mfr | ODU |
| Series | ODU MINI-SNAP® K |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Backshell, Strain Relief |
| Connector Type | Plug, Male Pins |
| Color | Silver |
| Current Rating (Amps) | 4A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 10 |
| Orientation | 0 |
| Shell Size - Insert | 0 |
| Operating Temperature | -40°C ~ 120°C |
| Applications | Industrial, Medical, Military, Testing Equipment & Measurement |
| Fastening Type | Push-Pull |
| Termination | Solder Cup |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | 0.138" ~ 0.157" (3.50mm ~ 4.00mm) |
| Contact Material | Brass |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Insert Material | Polyetheretherketone (PEEK) |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Primary Material | Metal |
