Quantity
Price
Total price
1
$46.2700
$46.2700
10
$42.4620
$424.6200
25
$40.8310
$1,020.7750
50
$39.4660
$1,973.3000
100
$37.2890
$3,728.9000
| TYPE | DESCRIPTION |
| Mfr | ODU |
| Series | ODU MINI-SNAP® F |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Backshell |

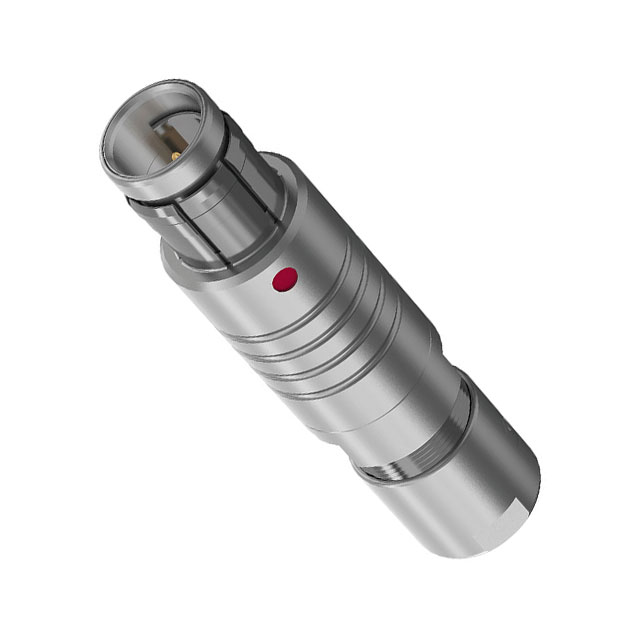

| Connector Type | Plug, Male Pins |
| Color | Silver |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 5 |
| Orientation | 1 |
| Shell Size - Insert | 1 |
| Operating Temperature | -40°C ~ 120°C |
| Applications | Industrial, Medical, Military, Testing Equipment & Measurement |
| Fastening Type | Push-Pull |
| Termination | Solder Cup |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | 0.157" ~ 0.177" (4.00mm ~ 4.50mm) |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Insert Material | Polyetheretherketone (PEEK) |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Primary Material | Metal |
